Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

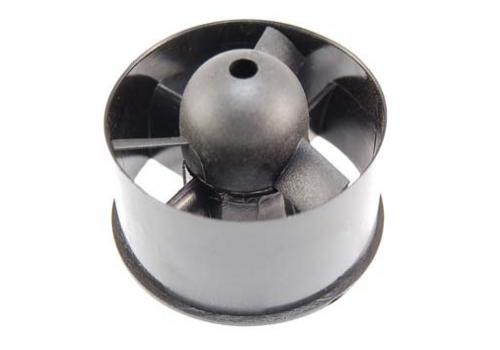

3 Bladed EDF Ducted Fan Unit 1.89” / Φ48mmxH28mm HY003-00101-3B

Model: HY003-00101-3B
Blade Dia: 48mm / 1.89inch
Blade No: 3
Made from high strength reinforced plastic.
Motor diameter: 19mm max
Weight: 12g
Length: 28mm


Recommended Setup

Black Mantis / Keda BM2040 4800kv

See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)
HY003-00102-6B	HY003-00102-6S (2mm)
HY003-00103-6B		003-00103-6S (2mm)		HY003-00103-6S(3.17mm)
HY003-00104-6B		HY003-00104-6S (2.3mm)		3.17mm / 003-00104-6S (3.17mm)
HY003-00105-5B			3mm /003-00105B (3mm)	003-00105-5B (3.17mm)		003-00105-5S (3.17mm)
HY003-00106-5B		2.3mm / 003-00106B (2.3mm)		003-00106B (3.17mm)	003-00106B (4mm)
HY003-00107-6B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00107-7B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00108-7B		003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)
HY003-00109-7B						HY003-00109-7S(5mm)
HY003-00110-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
