Home > Product List > Corona DS939MG Digital Servo


Overview >>

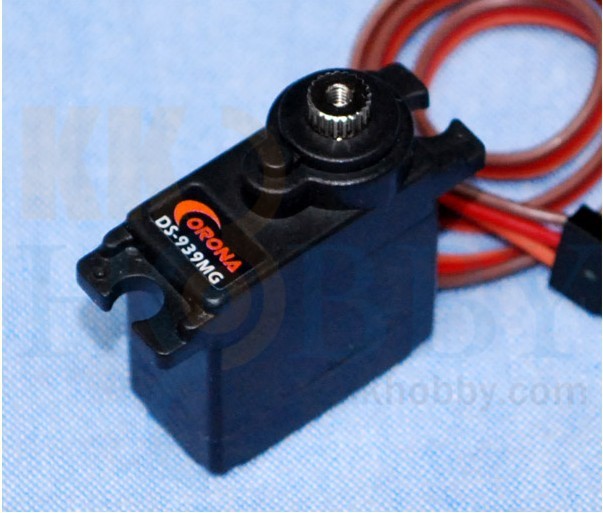

DS939MG

Size: 22.5X11.5X24.6mm(0.88"x0.45"x0.96")
Weight: 12.5g
Operating Voltage: 4.8V / 6.0V
Operating Current:200mA / 240mA
Operating Speed:0.14sec.60D/ 0.13sec.60D
Stall Torque: 2.5kg.cm / 2.7kg.cm(88.2-95.2oz.cm)
Dead Band: ≤3uSec
Operating Travel: 40D/one side pulse travelling 400us
Potentiometer:2 slider/Direct Drive
Ball bearing: MR85
Gear:Metal
Connector Wire: 215mm
Operating Temperature Range:-20℃~+60℃


Please Note: 6 volts really does mean 6 volts not 7+ as is likely with 5 fully charged 2nd generation NMH cells



Next:Corona DS-928BB Digital Servo
Previous:Corona DS-929MG Digital Servo
