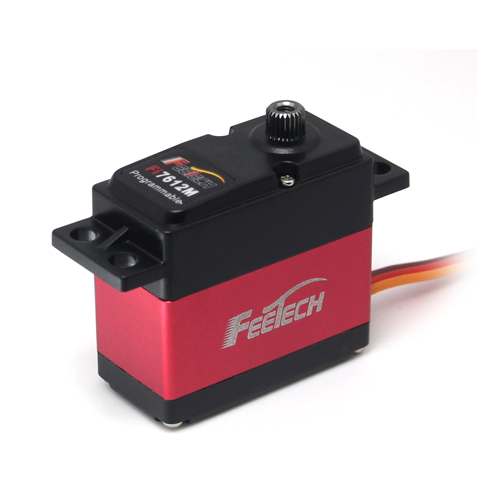

Home > Product List > High Speed 0.09sec 12.8kg.cm HV Programmable Digital Servo Fi7612M


Overview >>

Quick Details

  • Type: Car
  • Power: Battery
  • Scale: 1:8
  • Radio Control Style: RC Hobby
  • Brand Name: FEETECH
  • Model Number: FI7612M

Specifications

High Speed 0.09sec 13kg.cm HV Programmable Digital RC Servo Fi7612M

Specification:

FITEC
MODEL

SIZE
(mm)

WEIGHT

SPEED

Stall Torque

SKU

(LxWxH)

g

oz

sec/60°

kg.cm

oz.in

FT7612M

40.1 × 20.0 × 37.5

57

1.41

0.12(6V)
0.09( 7.4V)

10.2(6V)
12.8(7.4V)

141.9 (6V)
178.1 (7.4V)



The Drawings:





Fi7612M is FEETECH Programmable Digital Servo.



You need to use an USB interface (FE-SCPC-1) to program this servo. (For more information, please click here)

This servo is used in cars, boats, robots or where standard servos are used.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.

SKU:Fi7612M

Dimensions:40.1 × 20.0 × 37.5 mm

Weight:57 g

Operating Speed :0.12sec/60degree (6V)0.09sec/60degree (7.4V)

Stall Torque :10.2kg.cm/141.9oz.in(6V)12.8kg.cm/178.1oz.in(7.4V)

Operating Voltage :4.8V~7.4V

Control System :Digital

Direction :CW

Operating Angle :180degree

Required Pulse :500us-2500us

Bearing Type :2BB

Gear Type :Metal

Motor Type :Coreless

Connector Wire Length :30 cm

Features:

Standard Size Two Ball Bearing High Torque Programmable Digital Servo

Used 1 million times life potentiometer, high quality coreless motor.

Has the waterproof properties.

Can be programming angle of rotation to use USB interface by PC software.

Ideal for high-torque applications requiring a standard size servo

Universal connector fits Futaba, Hitec, JR, KO Propo.

One year warranty

Servo programmable function

1. FAIL SAFE, On or Off

2. Direction of Rotation

3. Travel Speed

4. Servo Max Torque limit and Punch

5. Center, End, and FAIL SAFE Point

6. Signal Pulse Set-Up

7. Stretch (Holding Power, Running Power, Acceleration and Deceleration)

8. Dead Band Width

9. Resolution Setup

10." Save and Open" File Options

11. Reset Factory Default Data

12. Read and Write Servo Data

If you need to have special functions, please tell us. We can to customize for you.

Requires:

FE-SCPC-1(If you need to programming this servo)
