Specification:



FITEC MODEL	SIZE (mm)	WEIGHT		SPEED	Stall Torque
SKU	(LxWxH)	g	oz	sec/60°	kg.cm	oz.in
FT513BL	40.2x20x37	56		0.09(4.8V) 0.07(6V)	12.8(6V) 15.8(7.4V)	178.07(7V) 219.8(7.4V)







The Drawings:



Introduction:

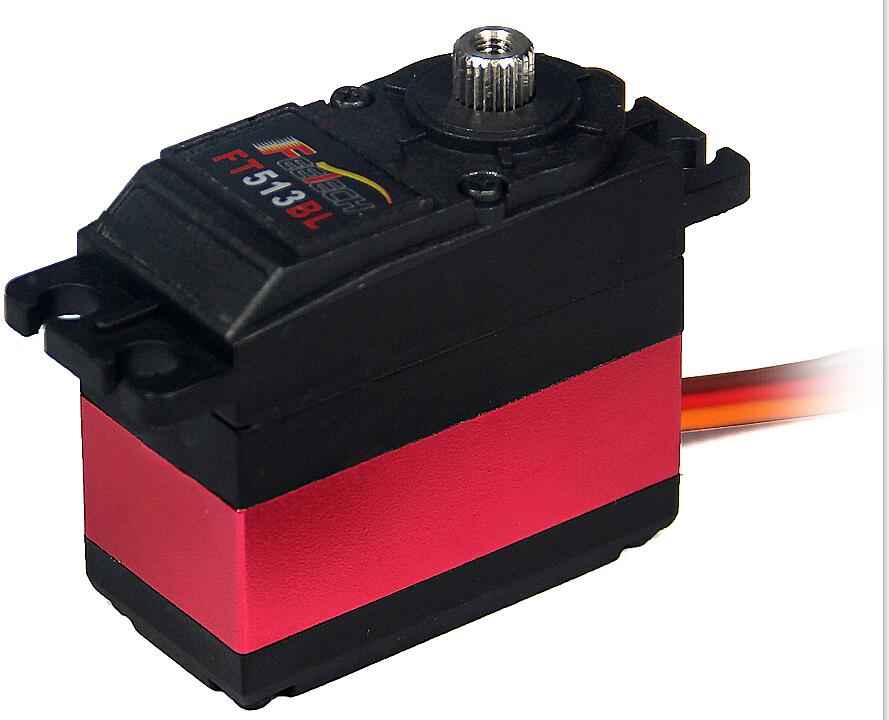

• FT513BL is FEETECH High Speed Brushless Digital Servo. This is our latest servo. It will be reduce the working current when work at stall torque over 10 second, that will the best to protect the servo burned off.
• This servo is used in cars, boats, robots or where standard servos are used.
• This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.

Features:

• Standard Size Two Ball Bearing High Speed Brushless Digital Servo
• Used 1 million times life potentiometer, high quality brushless motor.
• Used high quality anti-interference cable(Like S-Bus Cable)
• Have the waterproof properties.
• Ideal for high speed applications requiring a standard size servo
• Universal connector fits Futaba, Hitec, JR, KO Propo.
• One year warranty
• Standard digital Titanium gears servo 2BB
• Blushless motor, Aluminium middle hull
• Waterproof
• Operating Voltage: 4.8~6V
• Dead band width: 2usc
• Interface: (like JR)
• Wire length: 30cm

Specification:

• Standard 0.07sec/60degree High Speed Brushless Digital Servo FT511BL
• Dimensions:40.2 × 20.0 × 37mm
• Weight:60 g
• Operating Speed :0.09sec/60°(6V)        0.07sec/60°(7.4V)
• Stall Torque :12.8kg.cm/178.1 oz.in(6V)   15.8kg.cm/219.8 oz.in(7.4V)
• Operating Voltage :6V~7.4V
• Control System :Digital
• Direction :CCW
• Operating Angle :120degree
• Required Pulse :900us-2100us
• Bearing Type :2BB
• Gear Type :Metal
• Motor Type :Brushless
• Connector Wire Length :30 cm
